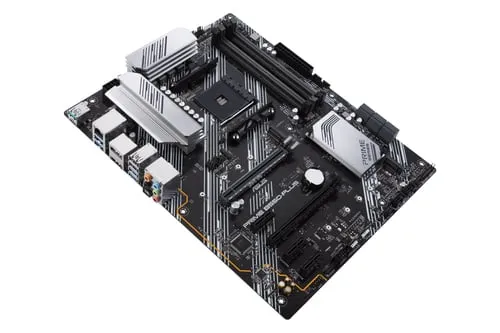

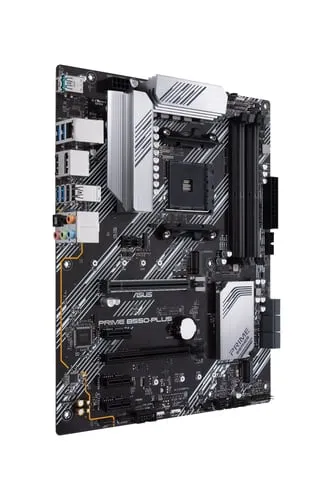

Motherboard Prime B550 PLUS ATX AM4

Descrição

Modelo	PRIME B550-Plus
CPU Suportado	AMD Ryzen 3ª para Socket AM4
Chipset	AMD B550
Memória	4 x DIMM: Máximo 128GB: DDR4 4600(O.C) / 4400(O.C) / 4266(O.C) / 4133(O.C) / 4000(O.C) / 3866(O.C) / 3733(O.C) / 3600(O.C) / 3466(O.C) / 333333(O.C) / 3200 / 3000 / 2800 / 2666 / 2400 / 2133 MHz ECC and non-ECC: Un-buffered Memory Processadores AMD Ryzen PRO da próxima geração 4 x DIMM: Máx. 128GB: DDR4 4800(O.C.) / 4600(O.C.) / 4466(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3600(O.C.) / 3466(O.C.) / 3200 / 3000 / 2800 / 2666 / 2400 / 2133 MHz ECC and non-ECC: Un-buffered Memory Arquitectura de Memória Dual Channel
Slots de Expansão	AMD Ryzen 3ª Geração 1 x PCIe 4.0 x16 (modo x16) Chipset AMD B550 1 x PCIe 3.0 x16 (modo x4) 3 x PCIe 3.0 x1
Armazenamento	AMD Ryzen 3ª Geração AMD Ryzen 1 x M.2 Socket 3: with M key: tipo 2242/2260/2280/22110 suporte de dispositivos de armazenamento (modo SATA & PCIe 4.0 x4) Chipset AMD B550 1 x M.2 Socket 3: with M key: tipo 2242/2260/2280/22110 suporte de dispositivos de armazenamento (modo SATA & PCIE 3.0 x 4)2 6 x SATA 6Gb/s porto(s): 2 Suporta Raid 0: 1: 10
LAN	Realtek® RTL8111H
Audio	Realtek ALC887 7.1-Channel High Definition Audio CODEC
Portas USB	Portas USB traseiras ( Total 8 ) 2 x USB 3.2 Gen 2 (1 x Type-A +1 x USB Type-C®) 4 x USB 3.2 Gen 1 (Tipo A) 2 x USB 2.0 (Tipo A) Portas USB frontais ( Total 6 ) 2 x USB 3.2 Gen 1 (ipo A) 4 x porta(s) USB 2.0 (Tipo A)
Multi-GPU	Suporta a tecnologia AMD 2-Way CrossFireX

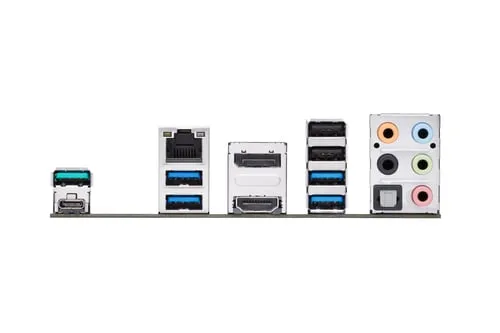

Portas Traseiras	1 x DisplayPort 1 x HDMI 1 x Porta RJ45 2 x USB 3.2 Gen 2 (1 x Type-A + 1 x USB Type-C®) 4 x USB 3.2 Gen 1 (azul) Tipo A 2 x USB 2.0 1 x Optical S/PDIF out 5 x Audio jacks
Portas Internas	1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key: type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 Socket 3 with M key: type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x SPI TPM header 6 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header
Form Factor	ATX
